Biometric Devices (ZKTeco)

Some companies use ZKTeco fingerprint or face terminals that push each punch to ANTE the moment it happens. This page is where you register those terminals, give each one its credentials, and watch what it has been sending. Punches that arrive become BIOMETRICS entries in Raw Logs, and the affected days are recalculated for Time Keeping automatically.

Where to Find It

Go to Manpower → Time & Attendance → Device Management and click Biometric devices at the top of the page. You need the Device Management permission. (Face-recognition terminals are a different kind of device — see Device Management.)

The Device List

Each registered terminal is one row:

Biometric devices list showing name, serial number, proof of identity, location, status, last seen and punch counts — The device list with the Activity, Edit, Rotate secret, Disable and Remove actions on each row

Column	Meaning
Name / Serial number / Location	How you identify the terminal.
Proof of identity	Shows Secret ...XXXX (last four characters of its secret) or IP allowlist.
Status	Enabled or Disabled. A disabled terminal is refused.
Last seen / Last punch push	When the terminal last contacted ANTE, and when it last delivered a punch.
Punches	How many punches ANTE has received from it.
Last error	The most recent problem, if any.

Row actions are Activity, Edit, Rotate secret, Enable / Disable and Remove.

Registering a Terminal

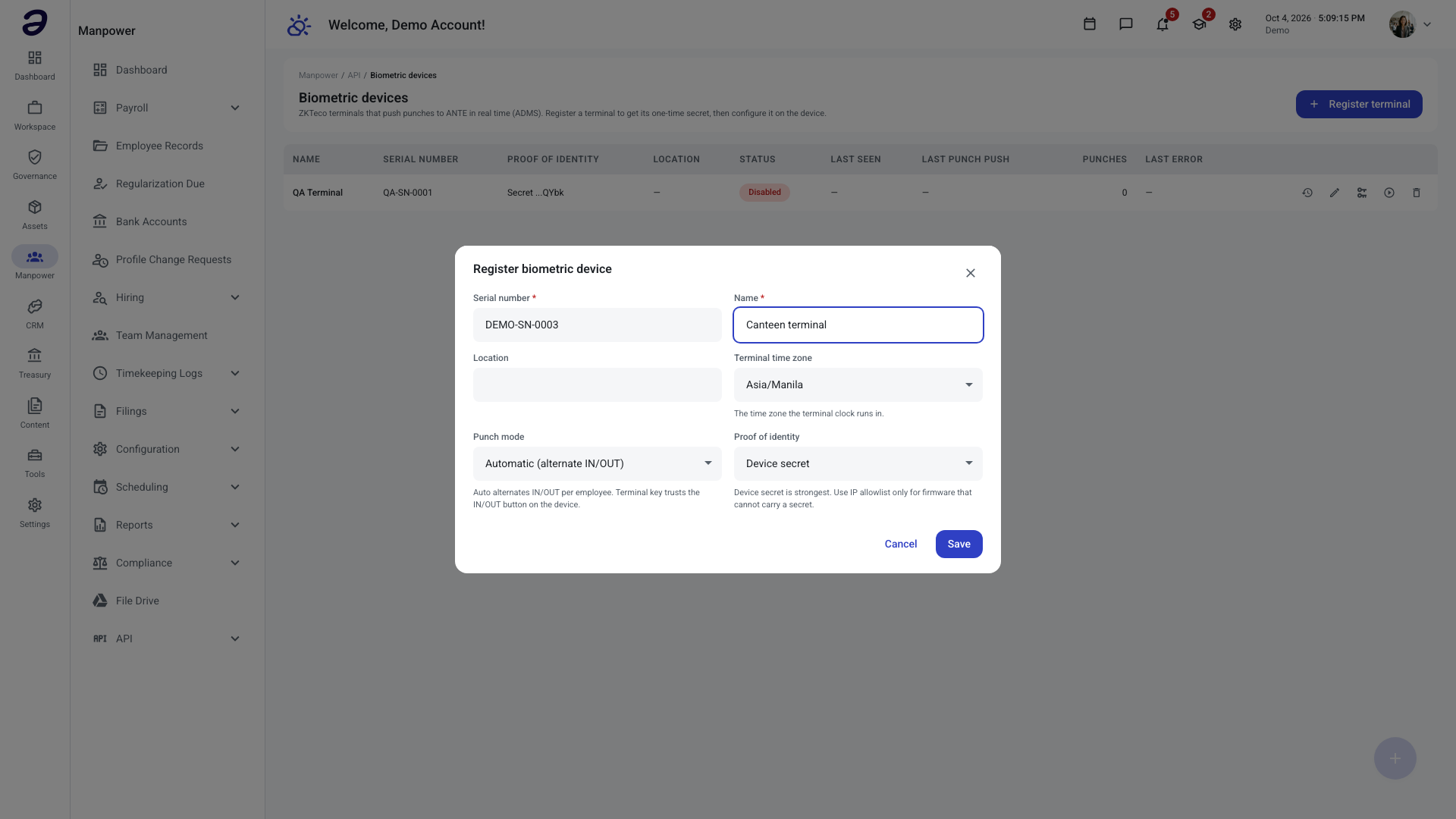

Register biometric device dialog with serial number, name, location, time zone, punch mode and proof of identity — The Register terminal form

Click Register terminal
The Register biometric device dialog opens.
Fill in the device details
Serial number*
The serial printed on the terminal. It must be unique within your company.
Name*
A friendly name, for example "Warehouse gate".
Location
Where the terminal is installed.
Terminal time zone
The time zone the terminal's own clock runs in.
Punch mode
Automatic (alternate IN/OUT) alternates in and out for each employee, while Use the terminal IN/OUT key trusts the IN/OUT button pressed on the device.
Proof of identity
Device secret is the strongest option and the default. Use IP allowlist only for terminals whose firmware cannot carry a secret.
Allowed addresses
Only for the IP allowlist: the terminal's IP addresses or ranges, separated by commas. Very broad ranges are not accepted. The form also shows a warning: an IP allowlist is only safe when the server accepts traffic exclusively through Cloudflare, and it should not be used for terminals behind a shared internet connection. If another company already holds the same serial number, the IP allowlist is refused and you must use a device secret.
Save and copy the credentials
A Terminal credentials dialog shows the Server path and, for a device secret, the Secret. Use Copy path, then click I saved it.
Configure the terminal
In the terminal's Cloud Server settings, enter the server address and port provided by your IT team and, where the firmware allows a path, the server path from the credentials dialog. Otherwise ask IT to add the path at your network gateway.

The secret is shown only once

It cannot be recovered afterwards. If it is lost, use Rotate secret to issue a new one.

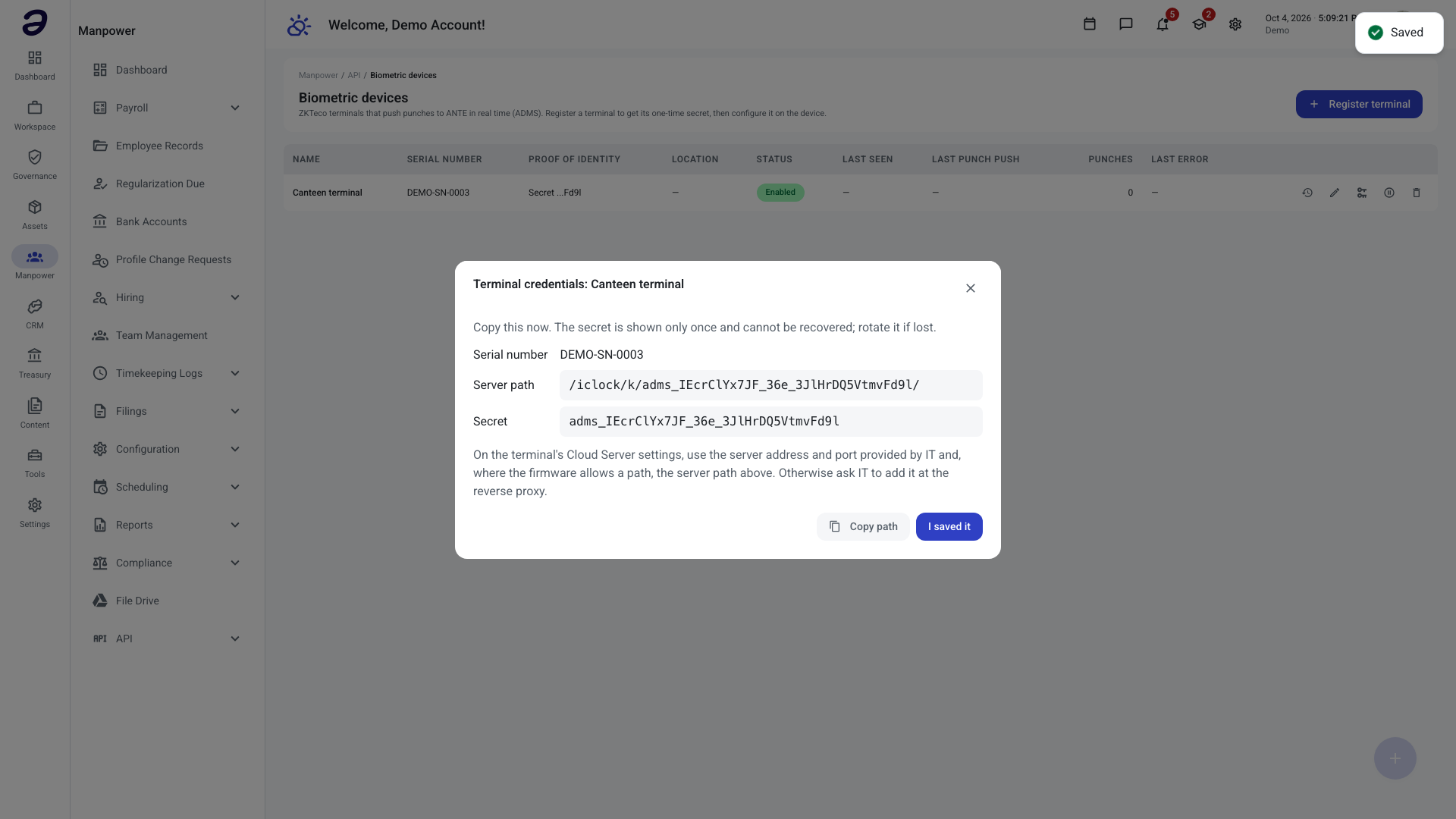

Terminal credentials dialog showing the one-time server path and secret — The one-time credentials. The secret is shown only once; this example belongs to a demonstration terminal that has been removed

Rotating a Secret

Click Rotate secret on the row and confirm. A new secret is issued, the old one stops working immediately, and the terminal must be reconfigured with the new path before it can send punches again.

Checking Activity

Activity opens two lists: Recent pushes (what the terminal sent, with counts of recorded, duplicate, unmapped and skipped records) and Recent punches with the terminal user ID, the employee, what it was recorded as, and the Result:

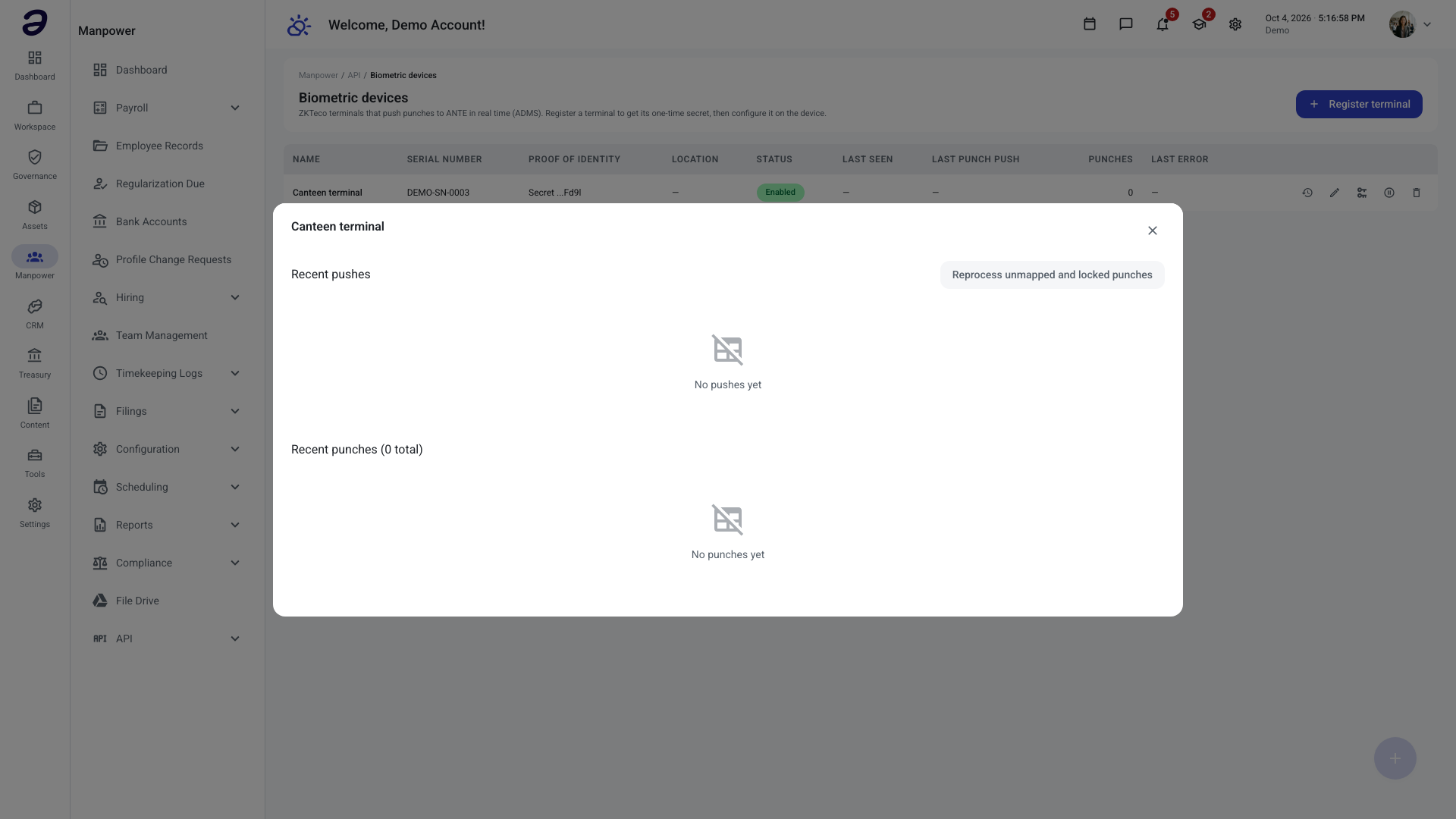

Terminal activity dialog with recent pushes, recent punches and a reprocess button — The activity dialog: recent pushes from the terminal and the punches they produced

Result	Meaning
Recorded	The punch became a raw log.
No matching employee	The terminal user ID is not linked to any employee yet.
Cutoff locked	The punch falls in a cutoff that payroll has already locked.
Ignored (double scan)	A repeat scan within moments of the first.
Already imported	The same moment was already imported from a file.
Out of order	The punch arrived out of sequence.

After linking an employee or unfreezing a cutoff, use Reprocess unmapped and locked punches to retry them.

Editing, Disabling and Removing

Edit changes the name, location, time zone, punch mode and proof of identity.
Disable refuses the terminal until you click Enable again.
Remove deletes it; the terminal is refused until it is registered again.

Info

A terminal that is not registered, or that does not present its secret or come from an allowed address, is turned away and creates nothing in your timekeeping.

Tip

If punches stop arriving, check Last seen and Last error first, then confirm the terminal can reach your IT-provided server address.

How It Connects

Set up first

Employee Records — an employee's biometrics number must match the ID on the terminal so a punch reaches the right person.

Feeds into

Raw Logs — each accepted punch appears there as a Biometrics entry.
Payroll Time Keeping — the affected days are recalculated automatically.
